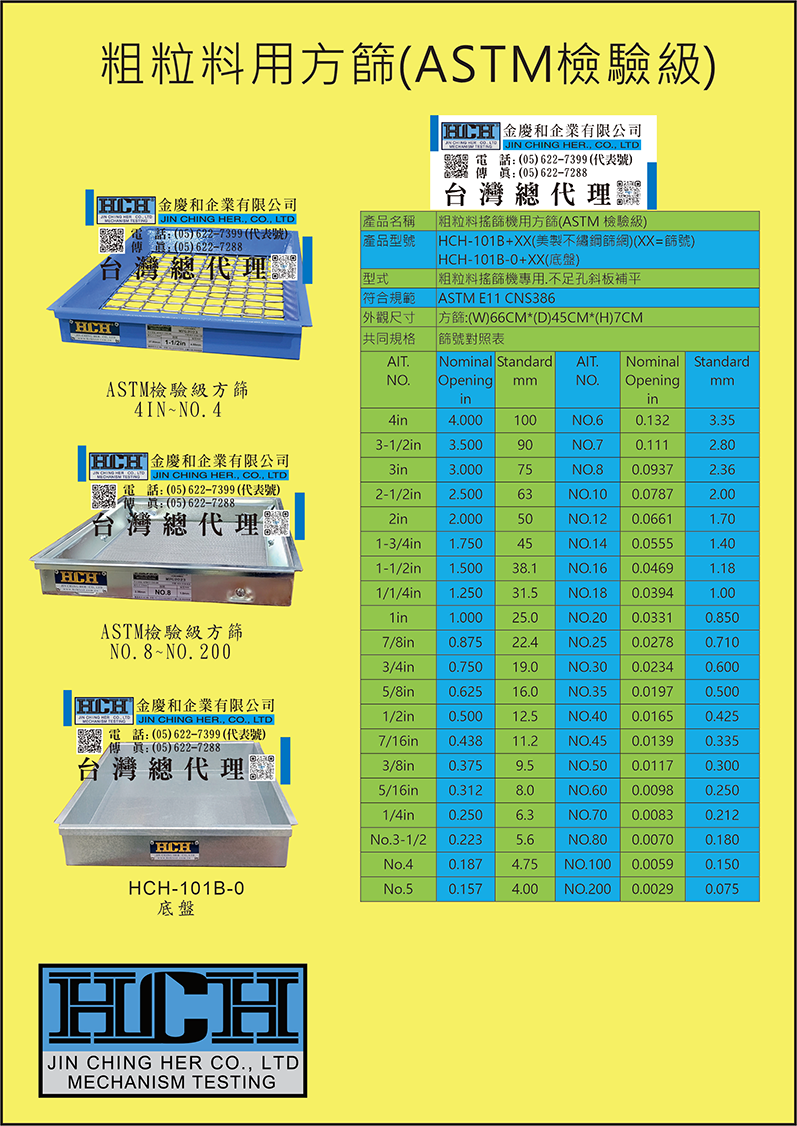

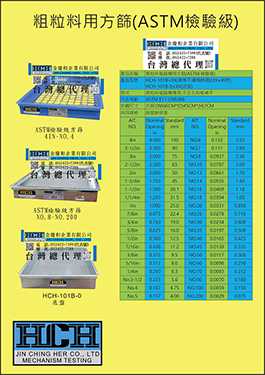

粗粒料方篩(檢驗級)尺寸對照表
型號 HCH-101B
產品簡述
|
產品名稱 |
粗粒料搖篩機用方篩(ASTM檢驗級) |
||||
|
產品型號 |
HCH-101B+XX(美製不繡鋼篩網)(XX=篩號) HCH-101B-0+XX(底盤) |
||||
|
型式 |
粗粒料搖篩機專用.不足孔斜板補平 |
||||
|
符合規範 |
ASTM E11 CNS386 |
||||
|
外觀尺寸 |
方篩:(W)66CM*(D)45CM*(H)7CM |
||||
|
共同規格 |
篩號對照表 |
||||
|
AIT. NO. |
Nominal Opening in |
Standard mm |
AIT. NO. |
Nominal Opening in |
Standard mm |
|
4in |
4.000 |
100 |
NO.6 |
0.132 |
3.35 |
|
3-1/2in |
3.500 |
90 |
NO.7 |
0.111 |
2.80 |
|
3in |
3.000 |
75 |
NO.8 |
0.0937 |
2.36 |
|
2-1/2in |
2.500 |
63 |
NO.10 |
0.0787 |
2.00 |
|
2in |
2.000 |
50 |
NO.12 |
0.0661 |
1.70 |
|
1-3/4in |
1.750 |
45 |
NO.14 |
0.0555 |
1.40 |
|
1-1/2in |
1.500 |
38.1 |
NO.16 |
0.0469 |
1.18 |
|
1/1/4in |
1.250 |
31.5 |
NO.18 |
0.0394 |
1.00 |
|
1in |
1.000 |
25.0 |
NO.20 |
0.0331 |
0.850 |
|
7/8in |
0.875 |
22.4 |
NO.25 |
0.0278 |
0.710 |
|
3/4in |
0.750 |
19.0 |
NO.30 |
0.0234 |
0.600 |
|
5/8in |
0.625 |
16.0 |
NO.35 |
0.0197 |
0.500 |
|
1/2in |
0.500 |
12.5 |
NO.40 |
0.0165 |
0.425 |
|
7/16in |
0.438 |
11.2 |
NO.45 |
0.0139 |
0.335 |
|
3/8in |
0.375 |
9.5 |
NO.50 |
0.0117 |
0.300 |
|
5/16in |
0.312 |
8.0 |
NO.60 |
0.0098 |
0.250 |
|
1/4in |
0.250 |
6.3 |
NO.70 |
0.0083 |
0.212 |
|
No.3-1/2 |
0.223 |
5.6 |
NO.80 |
0.0070 |
0.180 |
|
No.4 |
0.187 |
4.75 |
NO.100 |
0.0059 |
0.150 |
|
No.5 |
0.157 |
4.00 |
NO.200 |
0.0029 |
0.075 |
